Enbio S – Fully Automatic Class B Steam Automatic Autoclave
Exceeds all Health Canada and Provincial Infection Control Guidelines
Fast Cycles
Sterilize instruments between patients in only 7 minutes!

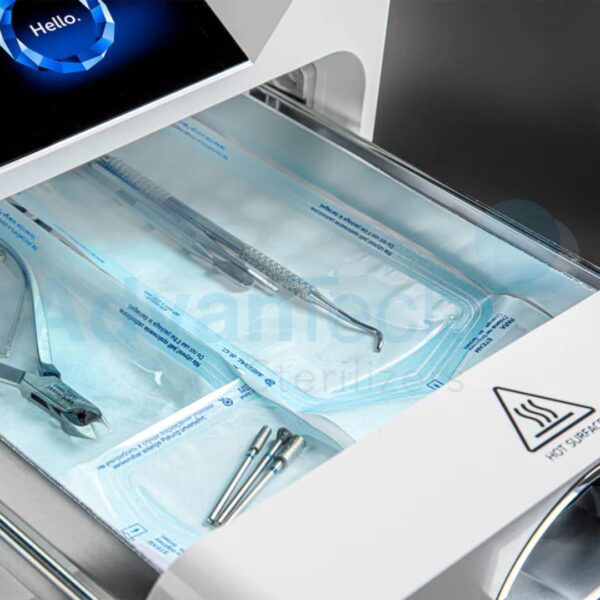

Capacity
Tray Size: 11 in. x 7 in. x 1.3 in (28 cm x 18 cm x 3.5 cm)
Smaller But Better
Process more instruments in a shorter amount of time. Holds up to 8 packs per cycle
Full Drying
Full drying capability with
15-minute wrapped cycles.
Pouches come out bone dry!
USB Datalogger
Record cycle data on USB
Download and Store with Enbio Software
Incredibly Silent
So quiet you will barely notice the sterilizer is running.
A compact, economical option suited for a wide range of applications such as medical and dental offices, laboratories, tattoo & piercing tattoo and body-piercing studios, beauty salons, laboratories, podiatry and foot care.
- Class B – Pre/Post Vaccum Sterilization Ensures the Highest Level of Tabletop Sterilization (Superior to Gravity Displacement Method)
- Full Automatic with Pre-set Programs: Unwrapped, Wrapped, Hollow, Liquid, Solid, Textile and Porous items
- High-precision Temperature and Pressure Control.
- Complies with EN13060 , Health Canada and CSA Electrical Standards
- Easy to Use and Operates Quietly.
- Easily Accessible Water Tank.
- Built-in Steam Generator Ensures Rapid Sterilization Cycles.
- Vacuum-Assisted Drying Ensures Completely Dry Packs
- Separate Fresh-Water and Waste-Water Tanks.
- User-Friendly LCD Screen Displaying Time, Temperature, Pressure, Process Alerts and Programmed Cycle.
- Multilanguage Menu
- Double-Safety Protection prevents a cycle from starting if the door is not correctly locked.
- Pressure Safety Valve Prevents Overpressure in the Chamber and Steam Generator.
- Power Automatically cuts if a short circuit or electrical fault occurs.
- Specific Error Codes detect and identify the exact cause of any operator or technical problem.
- Water Level Switch controls the min/max water level.
- Bowie Dick and Helix Testing Options
- Automatic Maintenance Warning.
- Free Technical Support and Spare Parts are Available for one year.
| Model: Enbio S | ||
| Load Space | 11” x 7” x 1.3” | |
| Overall Dimensions (WxHxD) | 9.8” x 6.3” x 22” | |
| Number of Trays | Includes 1 main tray (11” x 7” x 1.3”) fits a max of 8 pouches | |
| Voltage | 110-120V/60Hz | |
| Power (W) | 1600W, Max power consumption 15A |
| PROGRAM CYCLE | 134ºC FAST | 134ºC | 121ºC |
| Type of load | Unwrapped instruments only | Wrapped or Unwrapped instruments | Wrapped or Unwrapped instruments |
| Process temperature | 134ºC | 134ºC | 121ºC |
| Pre-vacuum number | 1 | 3 | 3 |
| Drying duration | 4 min | 4 min | 30 min |
| Total process duration* | 100g: 7 min | 100g: 13 min | 100g: 45 min |
| PROGRAM CYCLE | Bowie & Dick /Helix | Vacuum Leak Test | |
| Process temperature | 134ºC | – | |
| Pre-vacuum number | 3 | 1 | |
| Sterilization duration | 3.5 min | – | |
| Drying duration | 3 min | – | |
| Total process duration | 15 min | 16 min |
External Tank connectors
- Enbio uses external clean and waste water drains.
- drain tubes come with sterilizer, attach to any distilled water supply and waste water container
Chamber Size:
- Unit Dimensions: 9.8” x 6.3” x 22”
- Tray: 1 (holds max of 8 pouches)
- Tray Size: 11” x 7” x 1.3”
Ebio Specs-Sheet (PDF Download)
Enbio-User-manual (PDF Download)
- KEY FEATURES
A compact, economical option suited for a wide range of applications such as medical and dental offices, laboratories, tattoo & piercing tattoo and body-piercing studios, beauty salons, laboratories, podiatry and foot care.
- Class B – Pre/Post Vaccum Sterilization Ensures the Highest Level of Tabletop Sterilization (Superior to Gravity Displacement Method)
- Full Automatic with Pre-set Programs: Unwrapped, Wrapped, Hollow, Liquid, Solid, Textile and Porous items
- High-precision Temperature and Pressure Control.
- Complies with EN13060 , Health Canada and CSA Electrical Standards
- Easy to Use and Operates Quietly.
- Easily Accessible Water Tank.
- Built-in Steam Generator Ensures Rapid Sterilization Cycles.
- Vacuum-Assisted Drying Ensures Completely Dry Packs
- Separate Fresh-Water and Waste-Water Tanks.
- User-Friendly LCD Screen Displaying Time, Temperature, Pressure, Process Alerts and Programmed Cycle.
- Multilanguage Menu
- Double-Safety Protection prevents a cycle from starting if the door is not correctly locked.
- Pressure Safety Valve Prevents Overpressure in the Chamber and Steam Generator.
- Power Automatically cuts if a short circuit or electrical fault occurs.
- Specific Error Codes detect and identify the exact cause of any operator or technical problem.
- Water Level Switch controls the min/max water level.
- Bowie Dick and Helix Testing Options
- Automatic Maintenance Warning.
- Free Technical Support and Spare Parts are Available for one year.
- SPECIFICATIONS
Model: Enbio S Load Space 11” x 7” x 1.3” Overall Dimensions (WxHxD) 9.8” x 6.3” x 22” Number of Trays Includes 1 main tray (11” x 7” x 1.3”) fits a max of 8 pouches Voltage 110-120V/60Hz Power (W) 1600W, Max power consumption 15A PROGRAM CYCLE 134ºC FAST
134ºC
121ºC
Type of load Unwrapped instruments only Wrapped or Unwrapped instruments Wrapped or Unwrapped instruments Process temperature 134ºC
134ºC
121ºC
Pre-vacuum number 1
3
3
Drying duration 4 min
4 min
30 min
Total process duration* 100g: 7 min 100g: 13 min 100g: 45 min PROGRAM CYCLE Bowie & Dick /Helix Vacuum Leak Test Process temperature 134ºC
–
Pre-vacuum number 3
1
Sterilization duration 3.5 min
–
Drying duration 3 min
–
Total process duration 15 min
16 min
External Tank connectors
- Enbio uses external clean and waste water drains.
- drain tubes come with sterilizer, attach to any distilled water supply and waste water container
Chamber Size:
- Unit Dimensions: 9.8” x 6.3” x 22”
- Tray: 1 (holds max of 8 pouches)
- Tray Size: 11” x 7” x 1.3”
- DOCUMENTATION
Ebio Specs-Sheet (PDF Download)
Enbio-User-manual (PDF Download)
Recordkeeping:
- USB port: A thumb drive is provided for easy documentation upload for digital cycle data storage.
- Internal Memory: The last 20 cycles are automatically stored in the autoclave and can be printed out at any time
- Enbio software program: Easily organize, view, store and make notes about cycle.
